Nomad Shelter


Low cost emergency living for refugees
Housing design / Architectural study

The Nomad Shelter provides low cost modular housing made of inexpensive materials. The shelters can connect and form communities, keeping refugees’ sense of family and community intact during an otherwise difficult time.


Screen Shot 2018-08-02 at 1.19.04 PM.png
Screen Shot 2018-08-02 at 1.44.13 PM.png

Solar panels can fold downward at night to trap head and provide warmth

Top panel closes when not used for optimal parabolic solar cooking

Thin, strong beams allow for hanging of lamps or drying laundry

Screen Shot 2018-08-02 at 1.47.02 PM.png

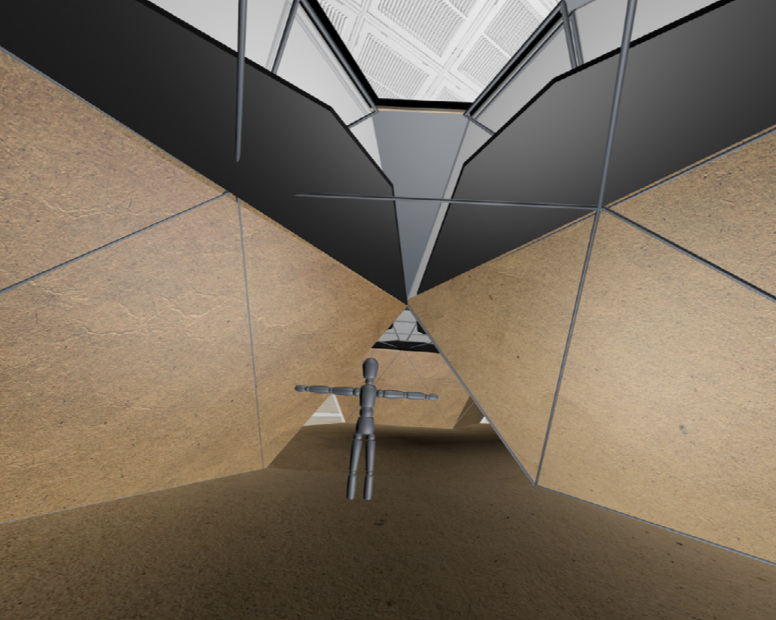

Approximately 7 to 8 feet vertical clearance

Entrances between family units may be opened or closed

Screen Shot 2018-08-02 at 1.47.23 PM.png

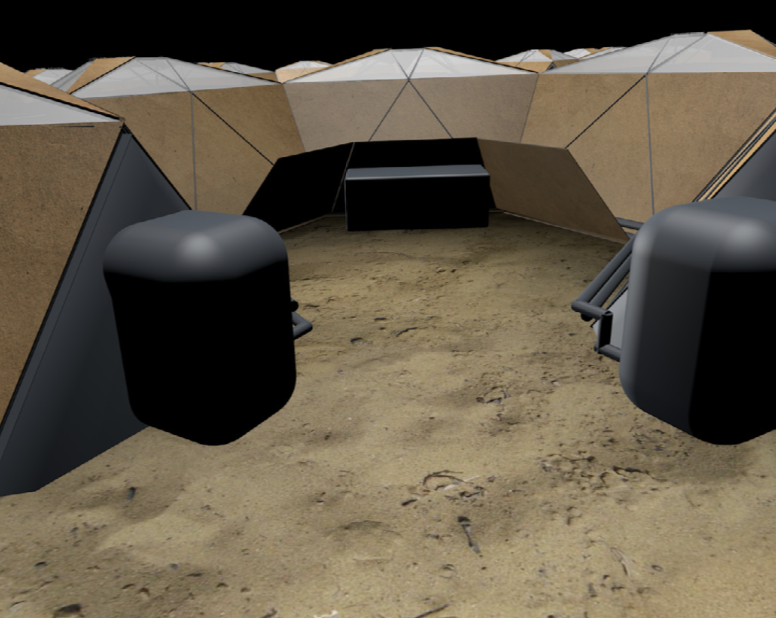

Gas & water travel through tubes fed into single family units

Communal cooking space in center dissipates excess heat into shelters

Water tank stores 6116.43 liters of water per multi family cluster

(203 piters per person, UN requires at least 20 liters per person per day)


USER PROFILE


Screen Shot 2018-08-02 at 1.39.04 PM.png

User: Meet Jana

Jana is a 22 year old Syrian Refugee. She lives in a refugee camp just outside of Jordan.

She and her family were displaced during political unrest. Jana does not consider this to be a permanent move; only a temporary displacement. She intends to go back to school and finish her education once it is over.




Unique Pain Points

Need for increased social interaction

Water, bathrooms, and food are often too far away

Must provide dignity; refugees are not a burden

Houses and shelters must be durable, but temporary

Children often play during day without supervision


11 Million

Syrians have fled their homes since the outbreak of civil war in March 2011



$125 million

Amount American Red Cross spent in 2010 on internal expenses

40 Million

People left displaced or homeless from natural disasters in 2009


IDEATION PROCESS


STRUCTURAL INSPIRATION FROM NATURE

Instead of the familiar tents and teepees currently in the market today, the Nomad Shelter takes mimics the shapes of nature’s structures




PROVEN TECHNIQUES

Many of my design decisions were influenced by the geodesic domes of Buckminster Fuller and Shigeru Ban’s pioneering of paper-made architecture

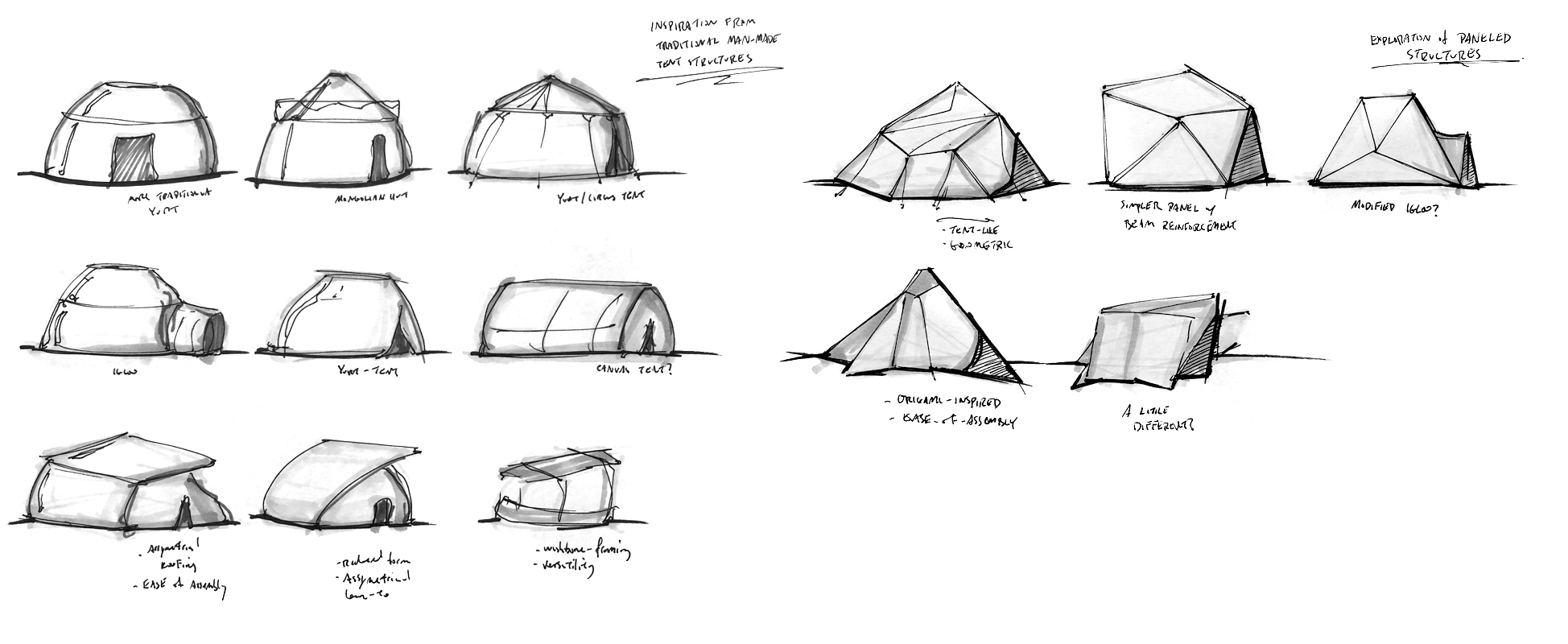

In early stage concept ideation, I explored traditional structures for nomadic uses: yurts, tents, igloos, etc. Later stages I began to look at ways in which I could mimic these familiar forms with flat panel origami structures

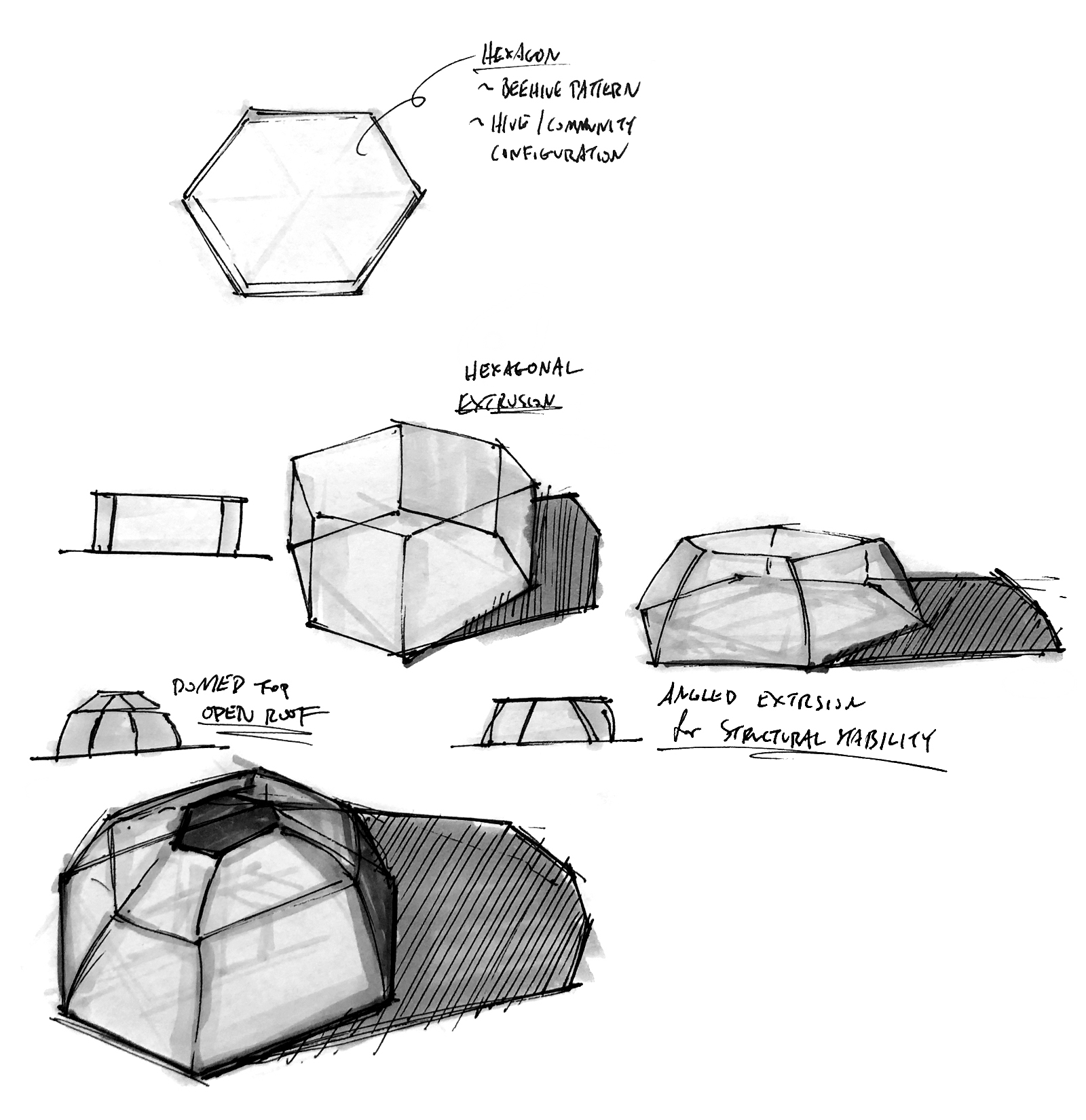

After form exploration I concluded that the half-orb was most stable for the Nomad. Additionally, I simplified it to a paneled, hexagonal structure with thing beams for additional support.


This simplified hexagonal form, in addition to its support strength, also allowed a beehive-like configuration to create modular housing or the forming of communities.
